定向磁信号传感器

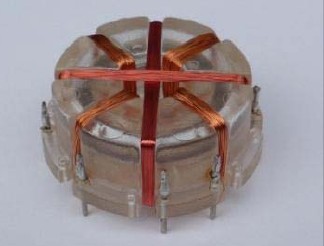

◎ 定向磁信号传感器(AR20s Two Axis Mgnetometer Component with Floaring Core)
 |
产品特点：
● 灵敏、稳定的磁通门技术
● 自我平衡核心能保证持续的输出 |
|
典型应用：
● 航用罗经
● 车载罗经 |
SPECFICATIONS
| |
|
min |
typ |
max |
Unit |
|
ERROFFSET |
Offset Error |
|
3 |
|
Deg |
|
ERRLIN |
Linarity Error |
|
1 |
|
Deg |
|
NTE4 |
Northerly Turning error range for 4 degrees of error |
16 |
18 |
20 |
Deg |
|
NTE2 |
Northerly Turning error range for 2 degrees of error |
15 |
17 |
19 |
Deg |
|
NTE1 |
Northerly Turning error range for 1 degrees of error |
15 |
16.5 |
18 |
Deg |
ABSOLUTE MAXIMUM RATINGS
|
PARAMETER |
DESCRIPTION |
NOTES |
CONDITIONS |
VALUE |
UNIT |
|
TSTOR |
Storage Temp Range |
|
|
-60 to +100 |
℃ |
|
TOPER |
Operating Temp Range |
|
|
-40 to +90 |
℃ |
|
|
Shock Resistance |
|
Single impact |
±40 |
g |
|
|
Vibration Resistance |
|
60Hz, 10Min |
±11 |
g |
|
|
Climate Test |
|
+71℃ at 95% Humidity
-20℃ at 85% Humidity |
6 |
Hours |
|
IE(MAX) |
Max Current in Excitation Winding |
|
|
200 |
mA |
|
IS(MAX) |
Max Current in Sense Winding |
|
|
80 |
mA |
|
PMAX |
Operating Pressure Range |
|
|
-0.5 to +1 |
Bar |

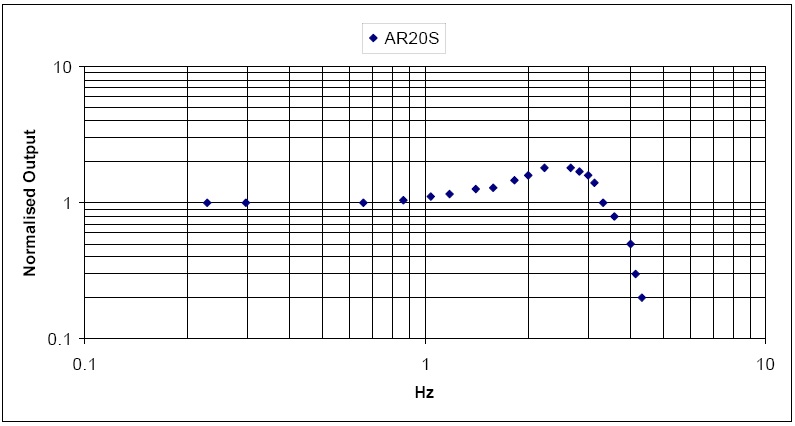

MECHANCIAL RESPONSE
|
